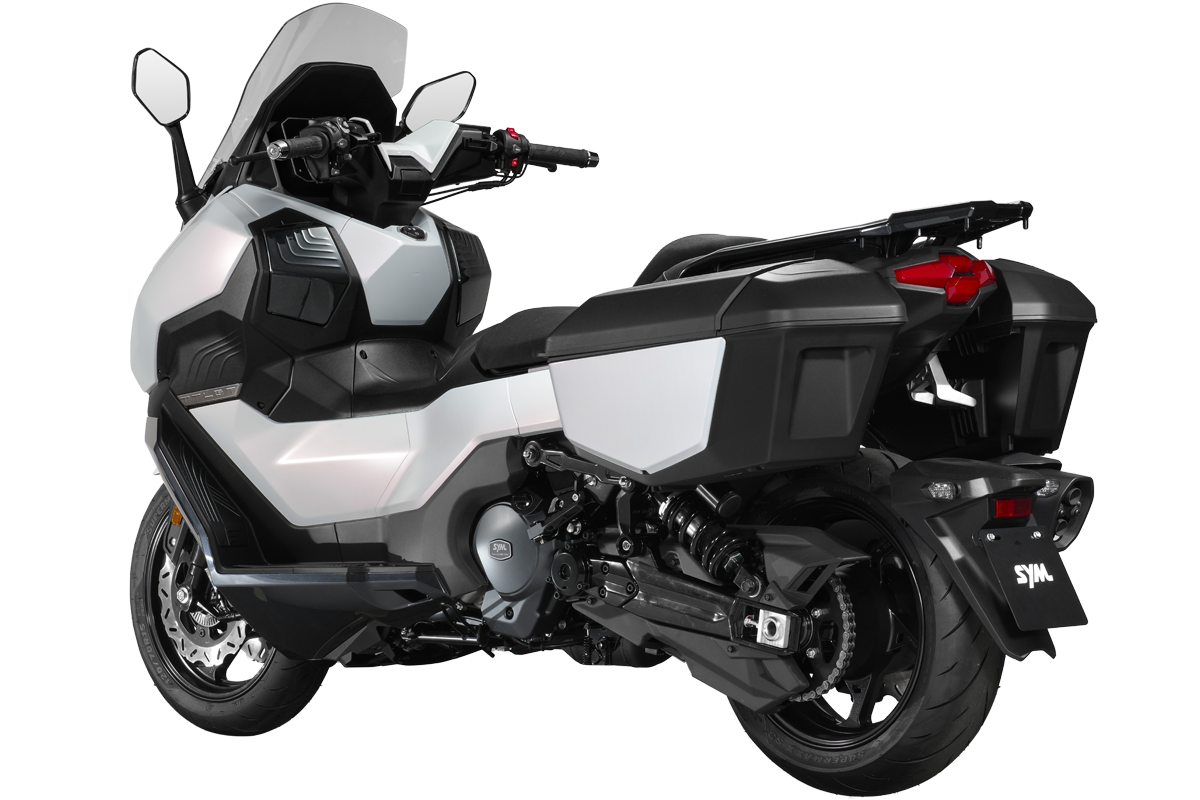

TTLBT

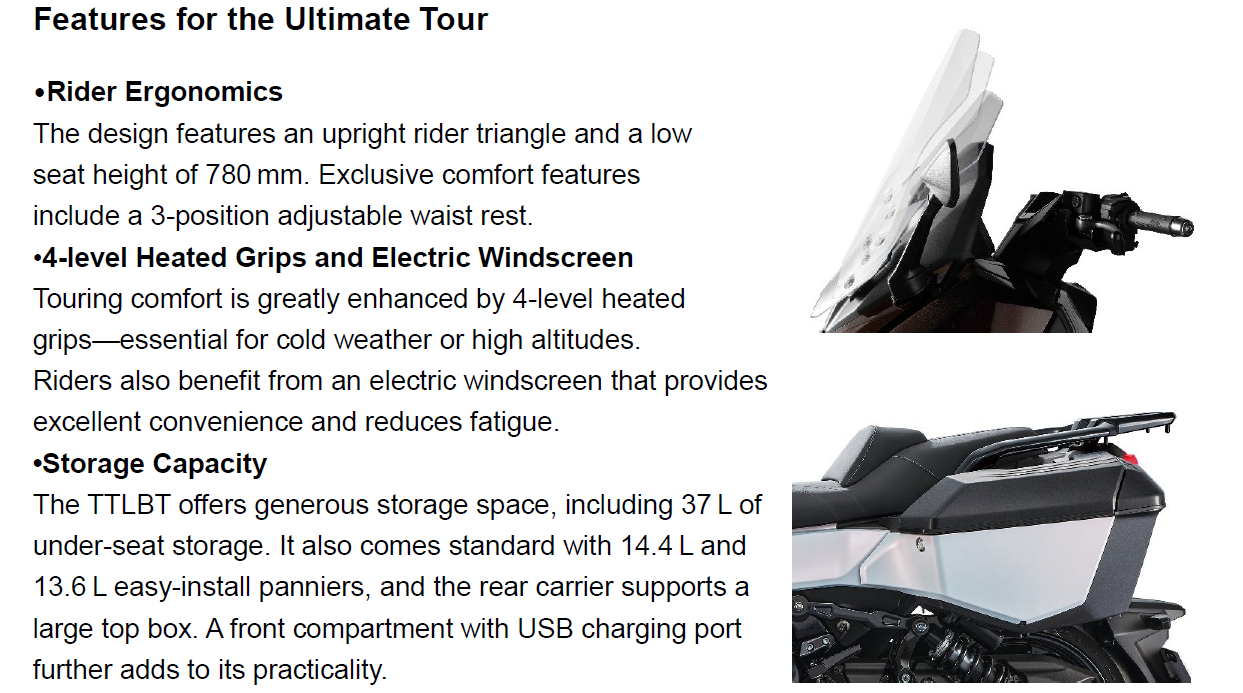

Features

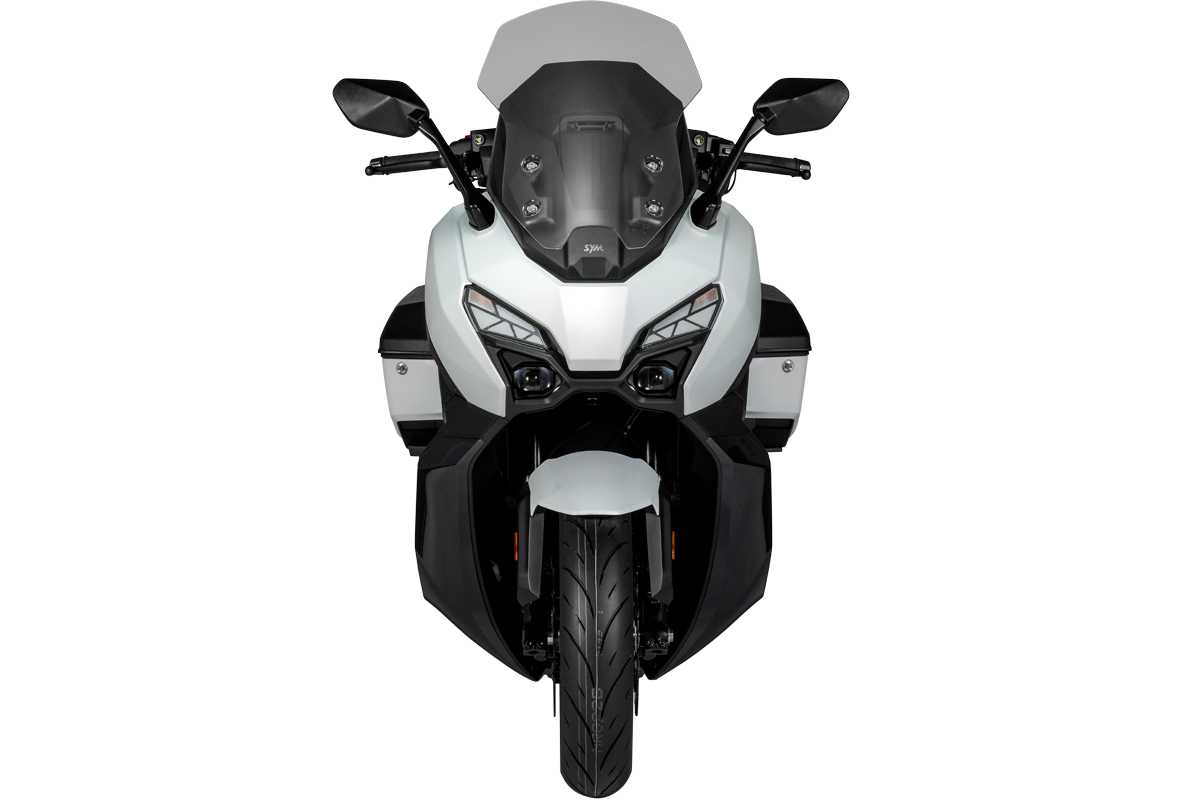

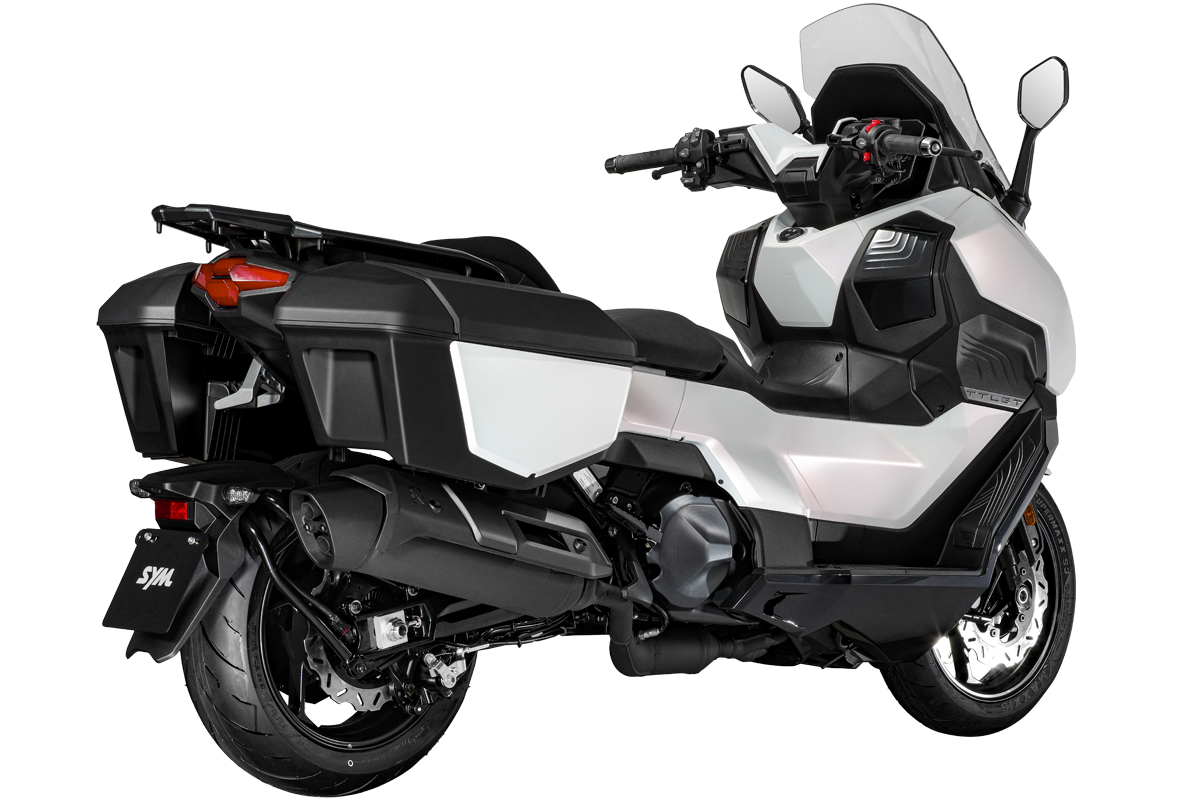

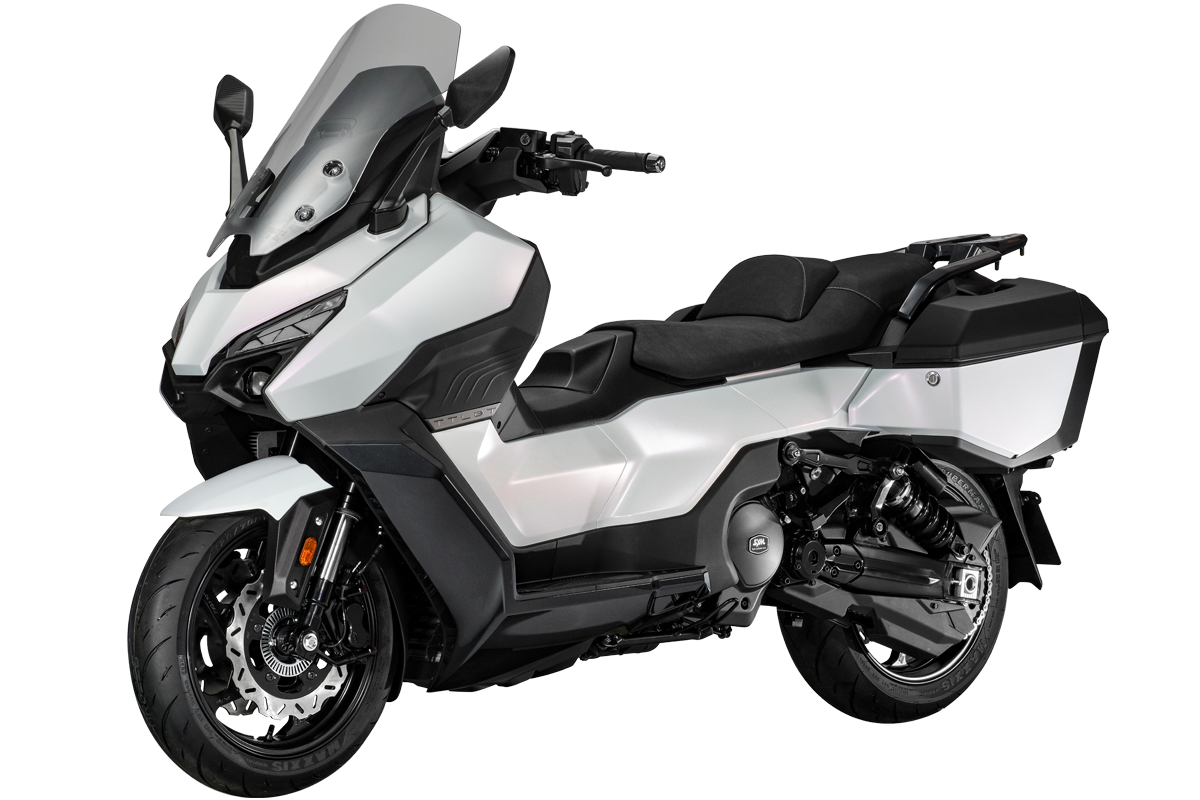

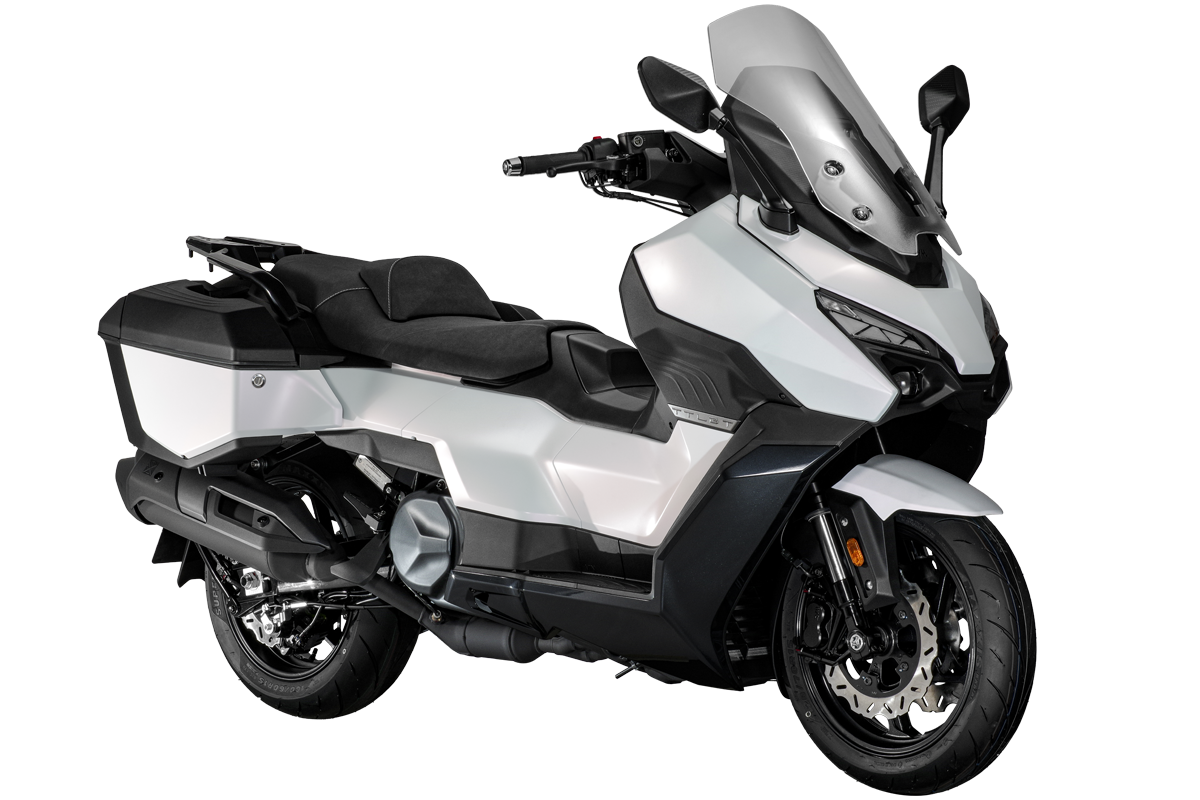

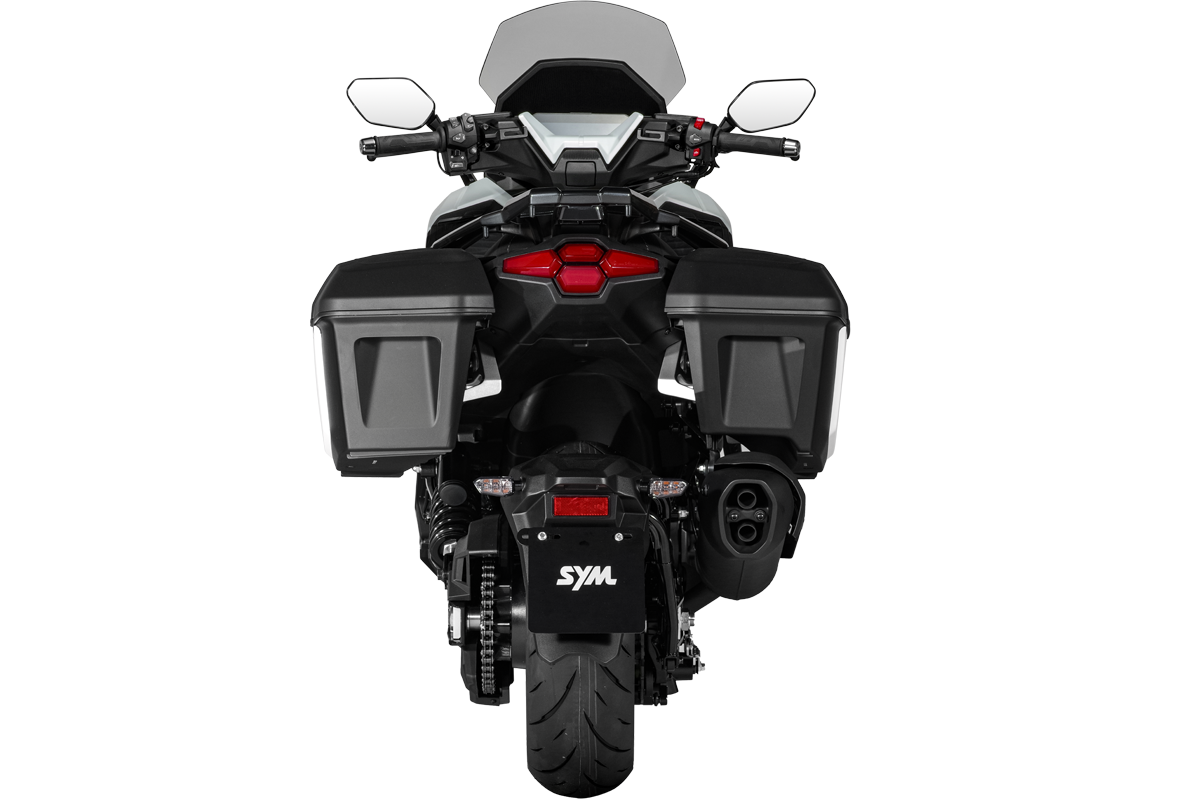

view 360°
Specification
Dimensions
Length x Width x Height (mm)
2235 x 890 x 1366 mm
Wheel Base (mm)
1543 mm
Rear Suspension
Single-sided Mono-shock with Multi-link
Front Tire Dimensions
120 / 70 - 15
Rear Tire Dimensions
160 / 60 - 15
Front Brakes Type/Diameter
Double Disc Ø 275mm + ABS
Rear Brakes Type/Diameter
Disc Ø 275 mm + ABS
Fuel Capacity
16L
Power System
Engine Type/Cylinder
2-cylinder, Liquid-cooled, 4-stroke, DOHC, 8-valve
Displacement
508 c.c.
Fuel System
E.F.I.
Max. Horsepower
33.5 kW / 6,750 rpm
Max. Torque
49.9 Nm / 5,250 rpm
Cooling System
Liquid
Transmission
C.V.T.
Electric System
Starting System
Electrical starter
Headlight
LED
Taillight
LED
Front Position Lamp
LED
Front/Rear Turning Signal Light
LED
"Above Specifications are for reference only,please refer to Certificate to get final Specs ! "
The information contained in this website may differ from the available models.
See your SYM dealers for more details. Thank you.
