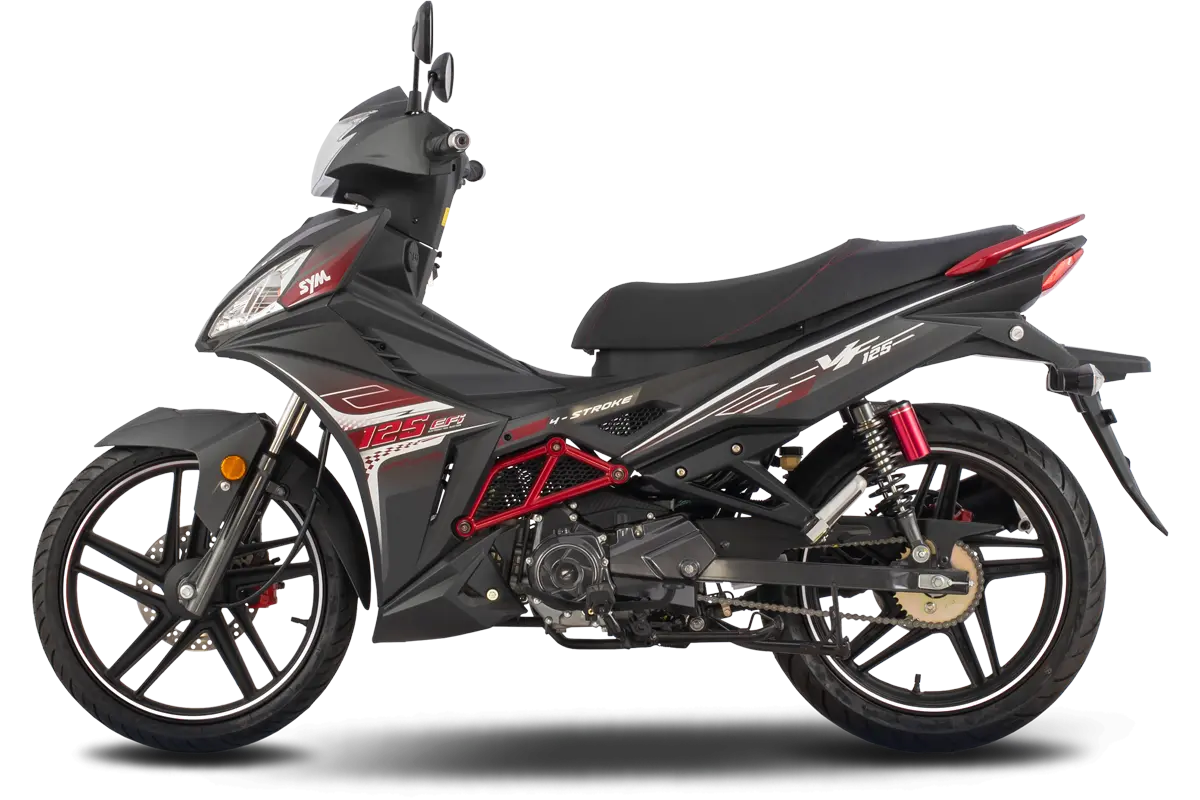

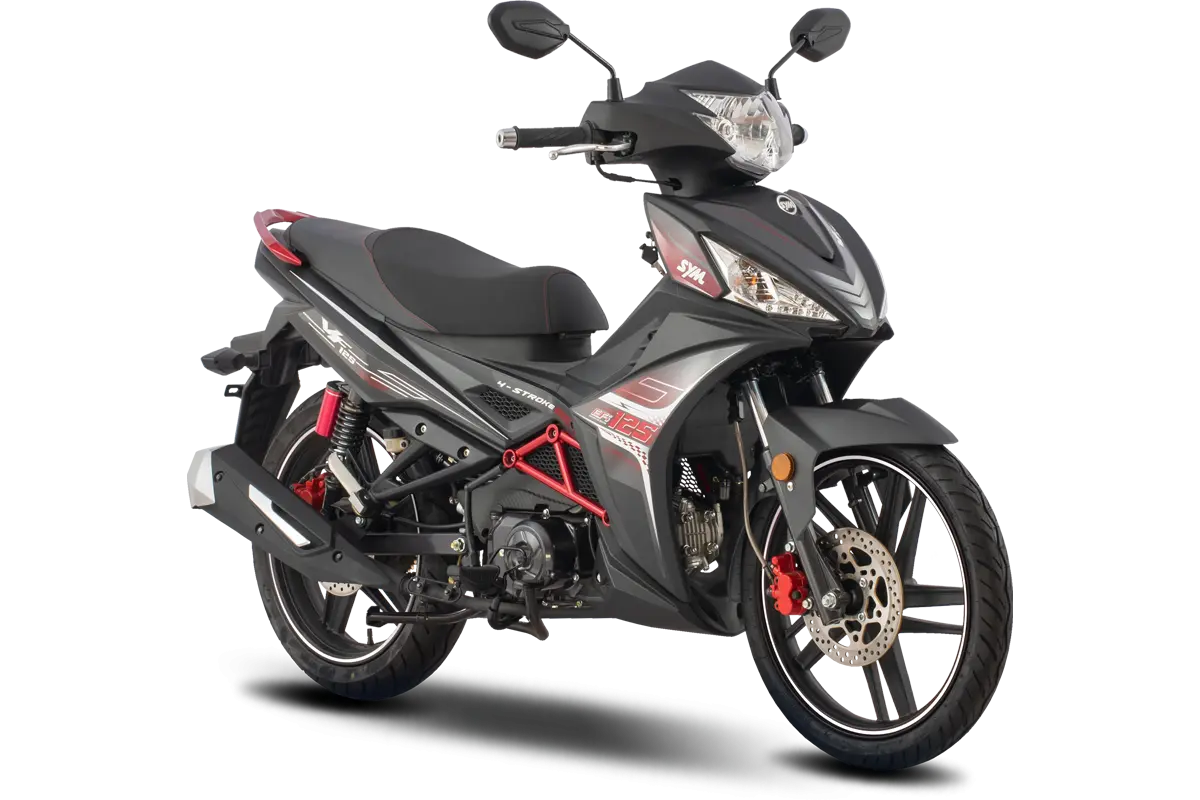

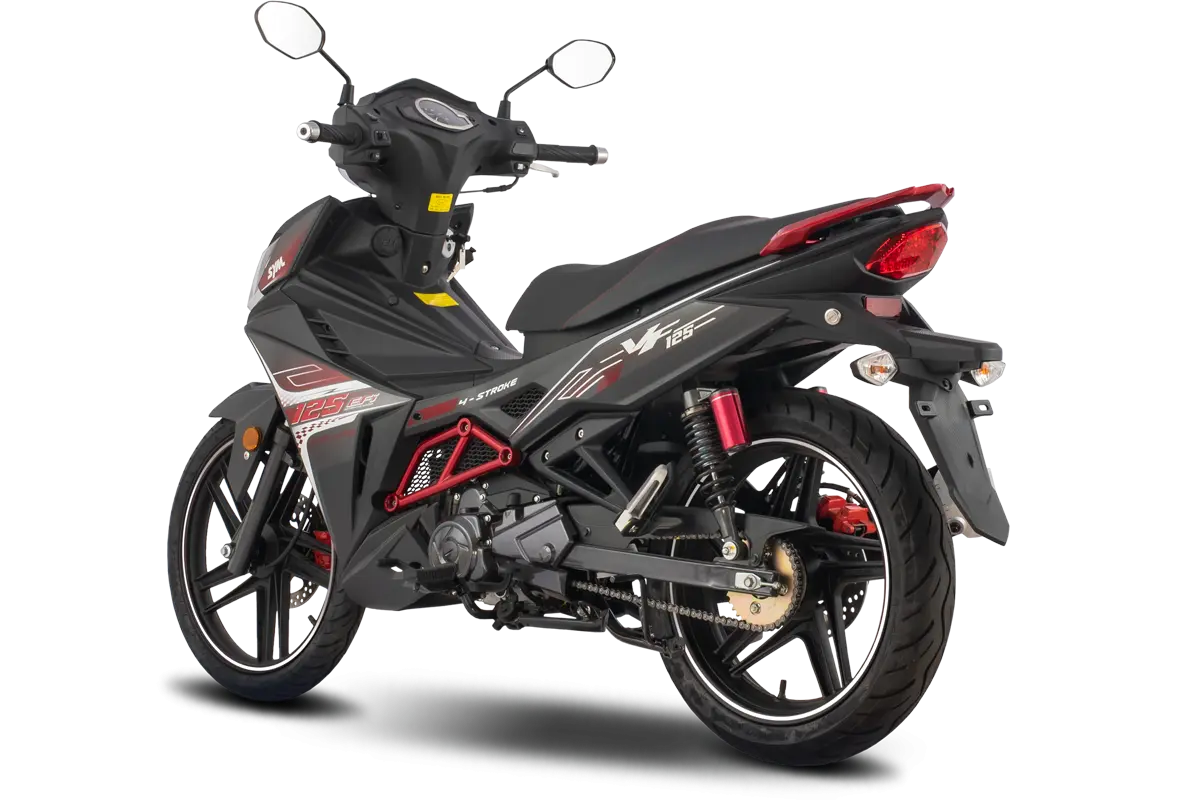

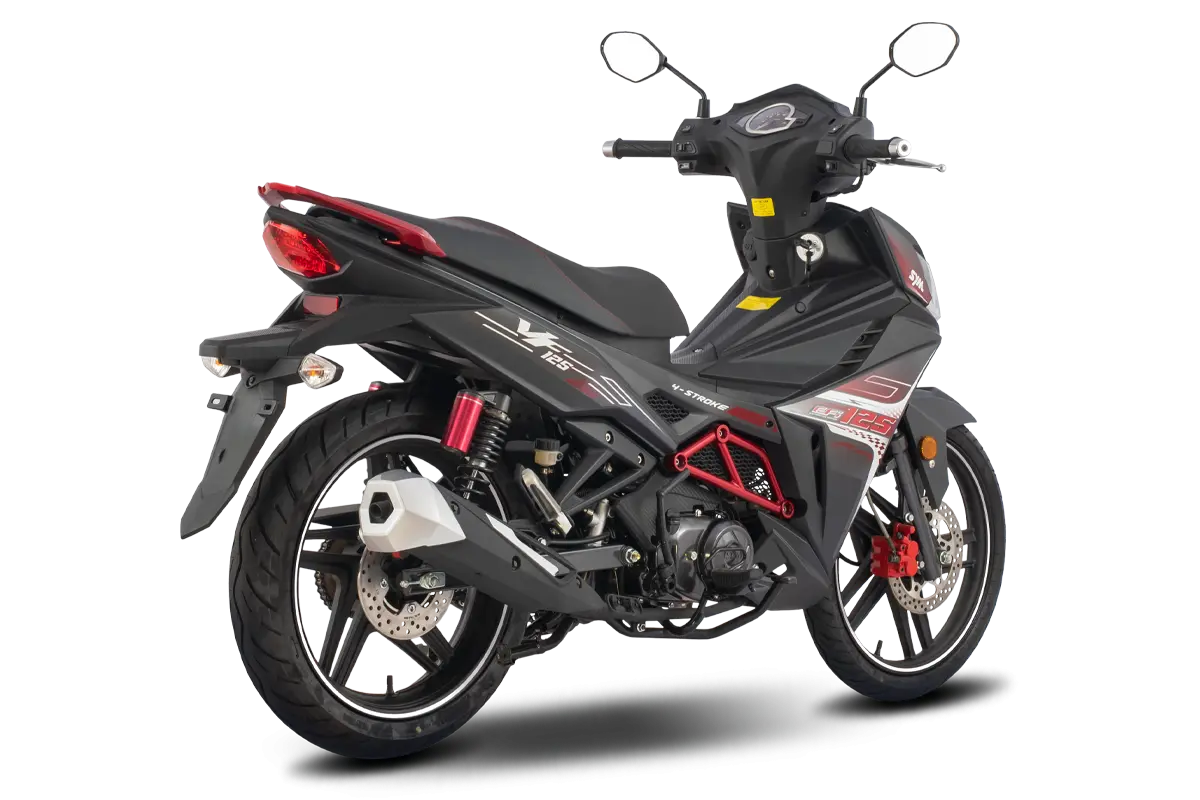

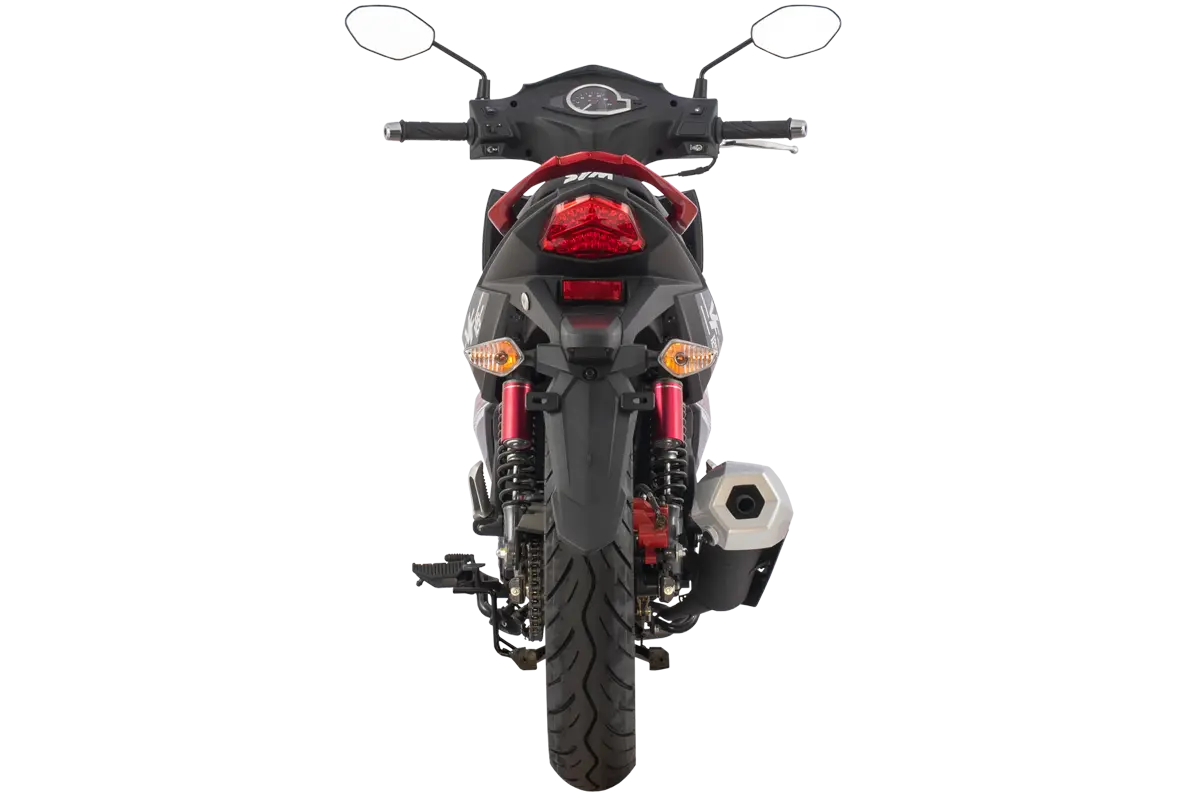

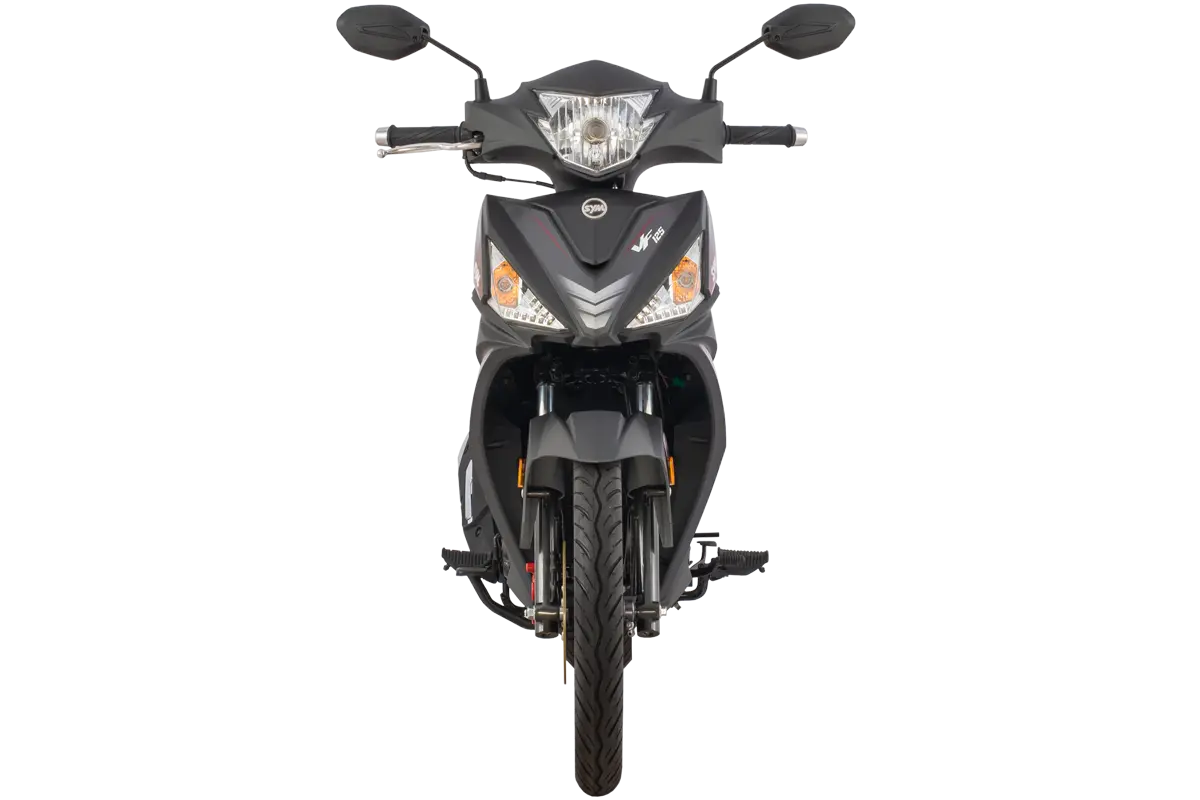

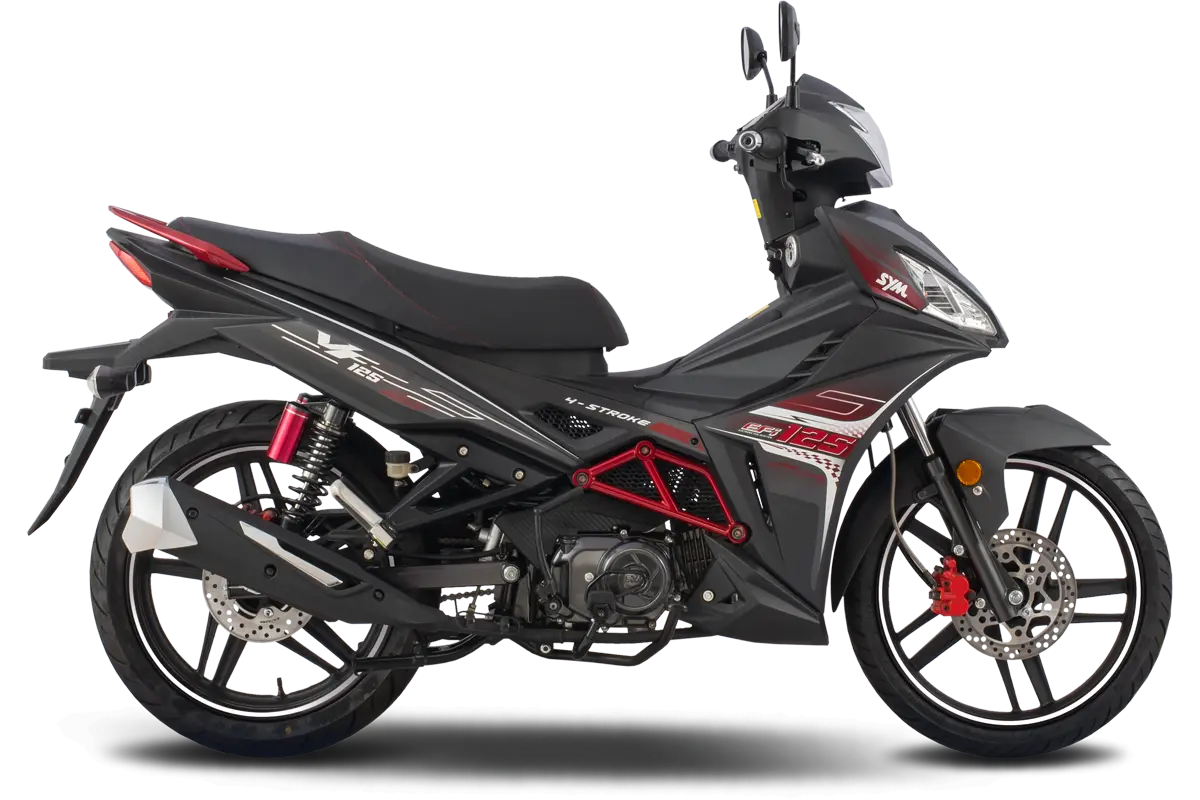

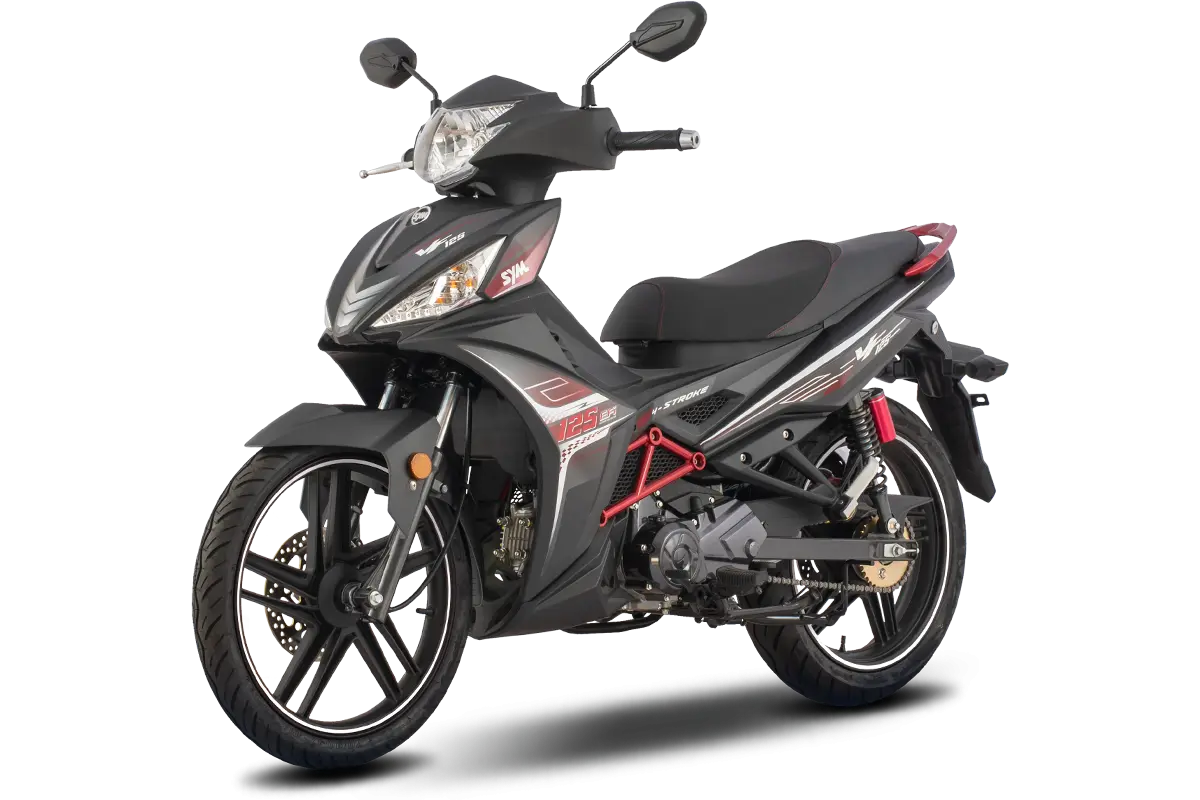

VF 125
Technical Specifications
Dimensions
Length x Width x Height (mm)
1965 x 720 x 1125 mm
Wheel Base (mm)
1262 mm
Curb Weight
111 kg
Front Suspension
Telescope fork
Rear Suspension
Swing Arm
Front/Rear Rim Material
Aluminum/ Aluminum
Front Tire Dimensions
70/90-17
Rear Tire Dimensions
120/70-17
Front Brakes Type/Diameter
Disk Ø 250mm + CBS
Rear Brakes Type/Diameter
Disk Ø 250mm + CBS
Fuel Capacity
3.6 L
Power System
Engine Type/Cylinder
4-stroke engine, single cylinder
Displacement
123
Fuel System
E.F.I.
Max. Horsepower
6.2 Kw / 8000 rpm
Max. Torque
8.6 Nm/ 5500rpm
Max. Speed
≧ 88 km/h
Cooling System
AIR
Transmission
gear/ 4-speed
Electric System
Starting System
Electrical starter
Headlight
12V/ 35W
Taillight
13.5 V- 0.48 W
Front Position Lamp
LED
Front/Rear Turning Signal Light
12 V 10W × 2/ 12 V 10W × 2
"Specifications are subject to change without notice. Please refer to the vehicle certificate or visit your authorized SYM dealer for the most accurate and up-to-date information."
