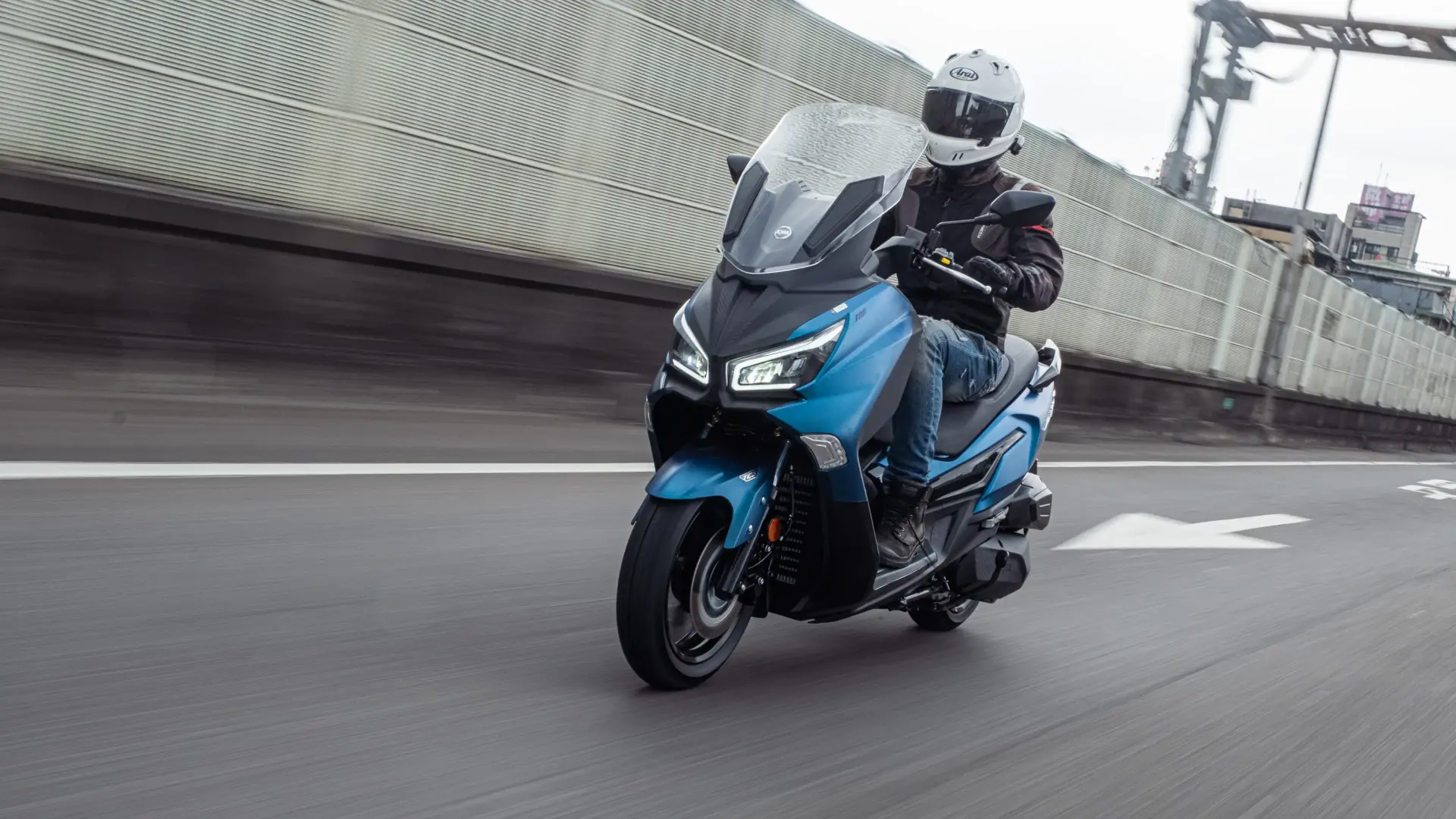

Riding with Your Scooter Can Be a Joyful and Amazing Experience
Joymax Z was designed to maximize your riding enjoyment.

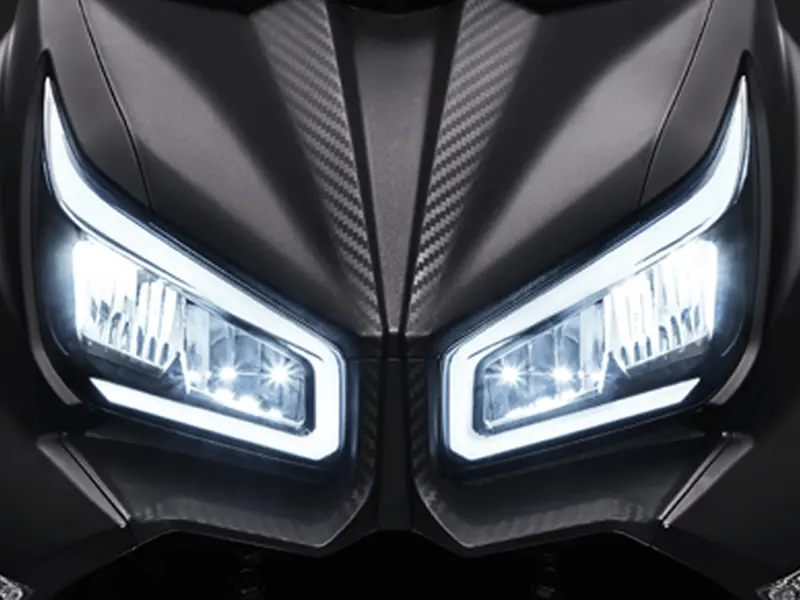

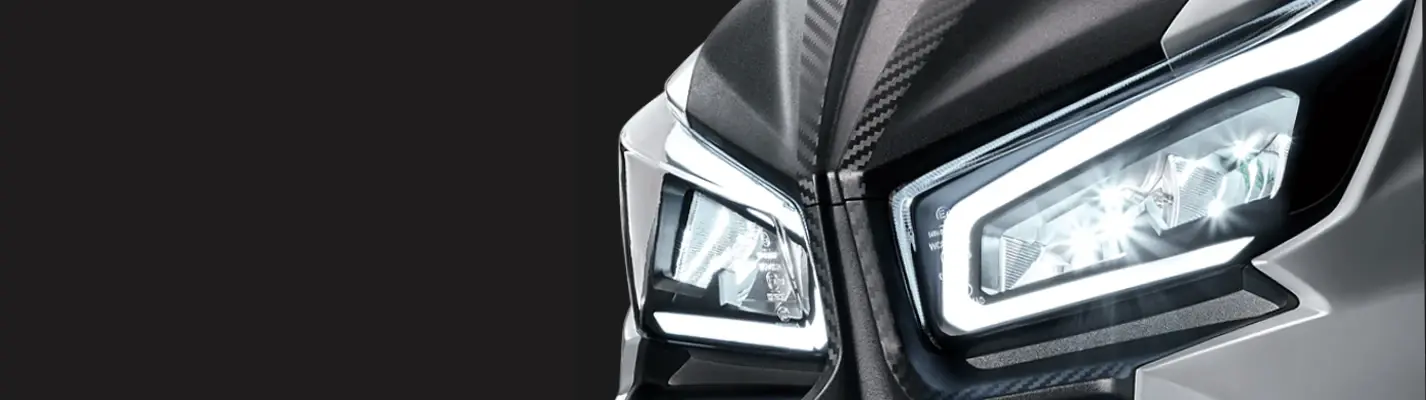

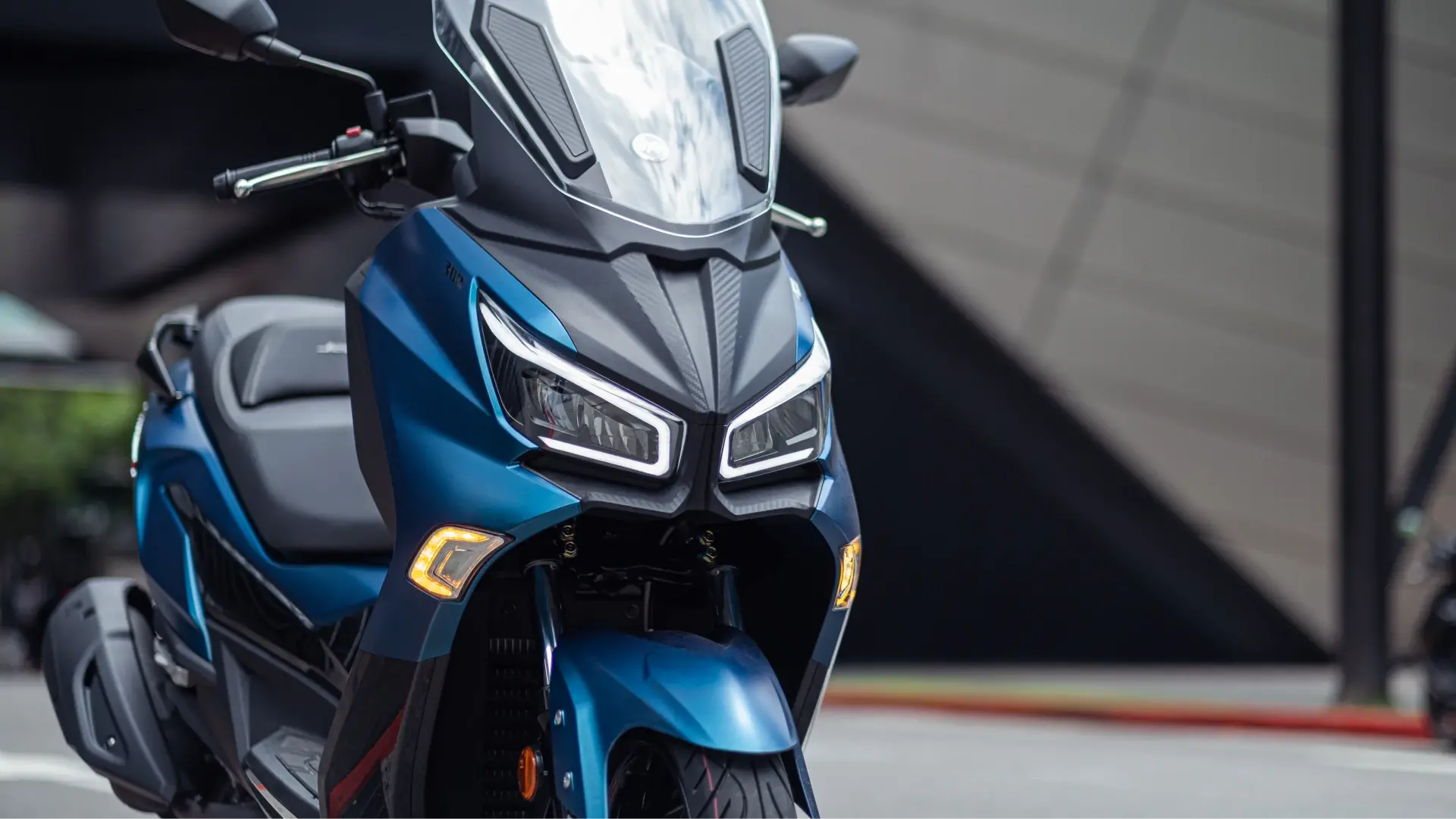

Full LED Headlights
LED dual headlights, bright and clear with high recognition on the road.

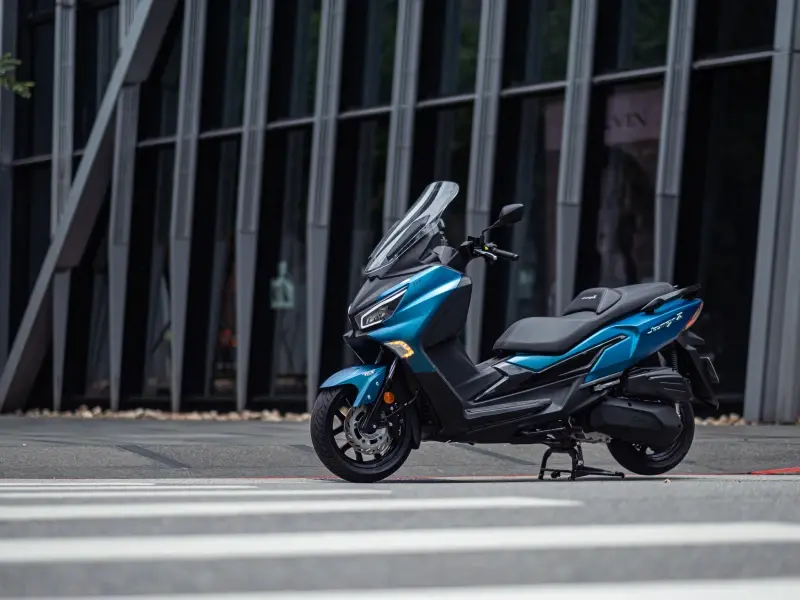

Traction Control System (TCS)
TCS attempts to prevent a vehicle's rear wheel from slipping at the time of getting started, accelerating, or making turns. It’s the mainstream safe function on the high-end scooter.
Other Features
- Quick charge 3.0
- Liquid-cooled engine
- Dual shock aborber
- Hazard control light
- Two helmets storage
- Adjustable windshield
- Adjustable waistrest
- Keyless
- TCS

Technical Specifications
Dimensions
Length x Width x Height (mm)
2190 x 750 x 1440 mm
Wheel Base (mm)
1530 mm
Curb Weight
172 kg
Front Suspension
Telescopic Fork
Rear Suspension
Dual Shock
Front/Rear Rim Material
Aluminum/ Aluminum
Front Tire Dimensions
120 / 70- 14
Rear Tire Dimensions
140 / 60-13
Front Brakes Type/Diameter
Disk Ø 260mm + ABS
Rear Brakes Type/Diameter
Disk Ø 240mm + ABS
Fuel Capacity
12 L
Seat Height (mm)
770 mm
Power System
Engine Type/Cylinder
4-stroke engine, single cylinder
Displacement
124.9 cc
Fuel System
E.F.I.
Max. Horsepower
10.5 kW / 8,750 rpm
Max. Torque
11.8 Nm / 6,750 rpm
Max. Speed
> 99 km/h
Cooling System
Liquid
Transmission
C.V.T.
Electric System
Starting System
Electrical starter
Headlight
LED

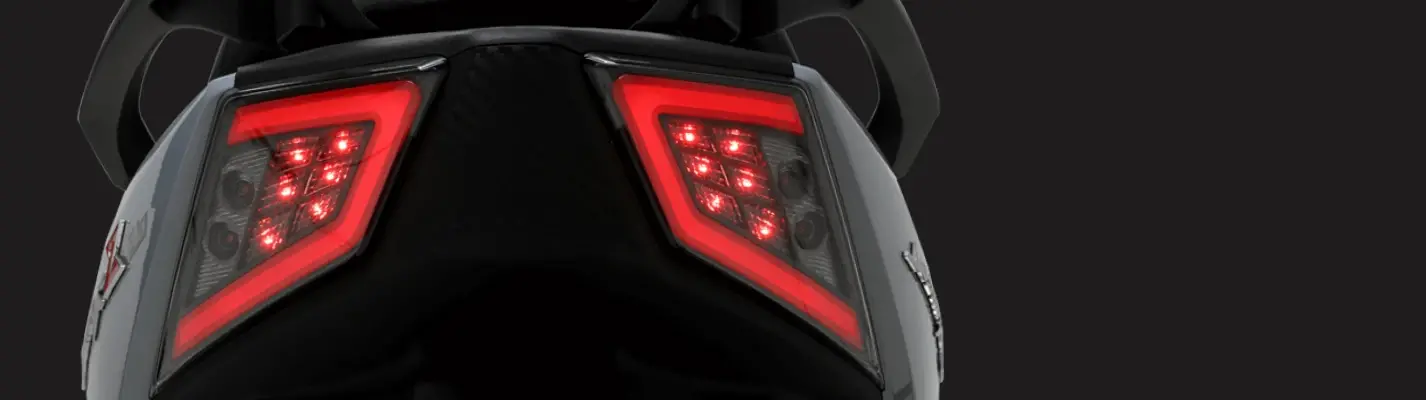

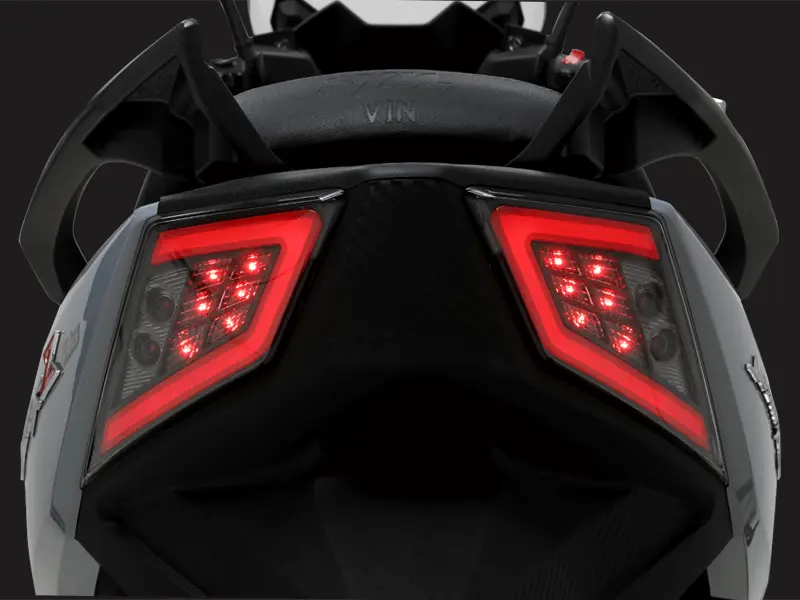

Taillight
LED
Front Position Lamp
LED
"Specifications are subject to change without notice. Please refer to the vehicle certificate or visit your authorized SYM dealer for the most accurate and up-to-date information."
Dimensions
Length x Width x Height (mm)
2210 x 760 x 1425 mm
Wheel Base (mm)
1535 mm
Curb Weight
190 kg
Front Suspension
Telescopic Fork
Rear Suspension
Dual Shock
Front/Rear Rim Material
Aluminum/ Aluminum
Front Tire Dimensions
120 / 70- 14
Rear Tire Dimensions
140 / 60-13
Front Brakes Type/Diameter
Disk Ø 260mm + ABS
Rear Brakes Type/Diameter
Disk Ø 240mm + ABS
Fuel Capacity
12 L
Seat Height (mm)
755 mm
Power System
Engine Type/Cylinder
4-stroke engine, single cylinder
Displacement
250 cc
Fuel System
E.F.I.
Max. Horsepower
18.1 kW / 8,000 rpm
Max. Torque
24 Nm / 6,000 rpm
Max. Speed
124 km/h
Cooling System
Liquid
Transmission
C.V.T.
Electric System
Starting System
Electrical starter
Headlight
LED
Taillight
LED
Front Position Lamp
LED
Front/Rear Turning Signal Light
LED
"Specifications are subject to change without notice. Please refer to the vehicle certificate or visit your authorized SYM dealer for the most accurate and up-to-date information."
Dimensions
Length x Width x Height (mm)
2210 x 760 x 1425 mm
Wheel Base (mm)
1535 mm
Curb Weight
190 kg
Front Suspension
Telescopic Fork
Rear Suspension
Dual Shock
Front/Rear Rim Material
Aluminum/ Aluminum
Front Tire Dimensions
120 / 70- 14
Rear Tire Dimensions
140 / 60-13
Front Brakes Type/Diameter
Disk Ø 260mm + ABS
Rear Brakes Type/Diameter
Disk Ø 240mm + ABS
Fuel Capacity
12 L
Seat Height (mm)
755 mm
Power System
Engine Type/Cylinder
4-stroke engine, single cylinder
Displacement
278 c.c.
Fuel System
E.F.I.
Max. Horsepower
19 kW/ 8,000 rpm
Max. Torque
26 Nm / 6,000 rpm
Max. Speed
> 127 km/h
Cooling System
Liquid
Transmission
C.V.T.
Electric System
Starting System
Electrical starter
Headlight
LED
Taillight
LED
Front Position Lamp
LED
Front/Rear Turning Signal Light
LED
"Specifications are subject to change without notice. Please refer to the vehicle certificate or visit your authorized SYM dealer for the most accurate and up-to-date information."
